GMS-I

Profiler inside contour

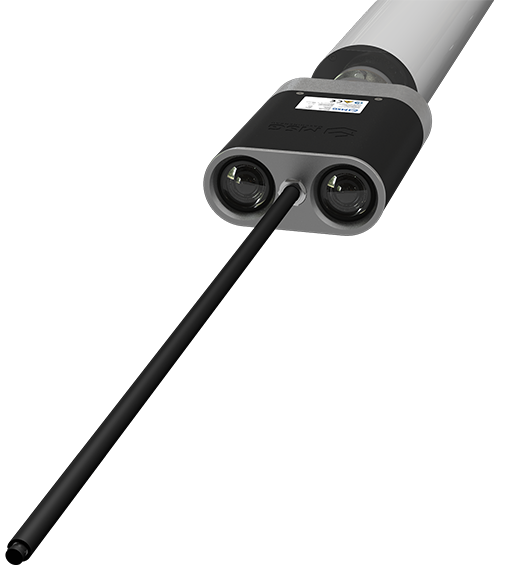

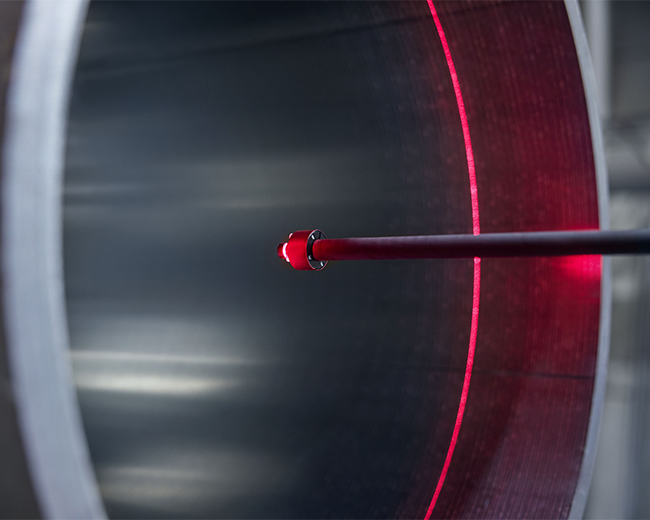

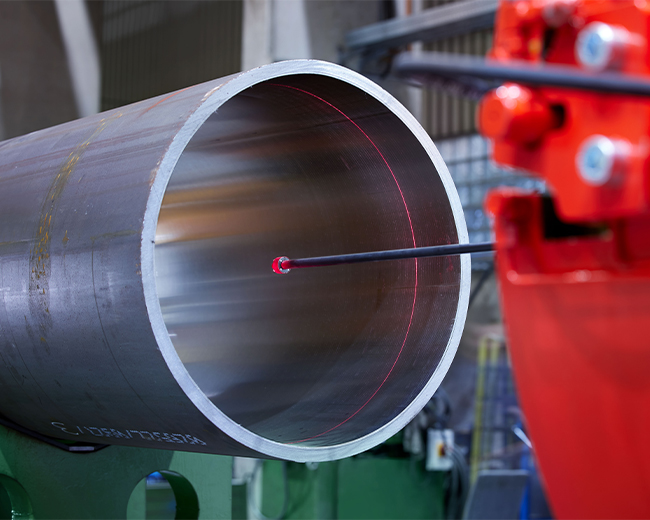

The GMS-I provides information concerning the internal contour of pipes. Even on high reflective surfaces.

GMS-I
Download data sheet
Request an offer

Measurably precise

The only true value – the inner values

In addition to recording pipes with constant bending radii, free-form bent pipes can also be precisely measured and documented. The measuring system is ideally suited for use in quality assurance and for correcting bending data.

Digitaler Nutzen gemessener Daten
01

Digital benefits of measured data

Whether for live monitoring of the inner contour in bending processes, for dimensional control in the adjustment area of your production, or for simple digitization of the production quality before delivery – the benefits of the GMS-I in the context of pipe production are manifold and promise highly accurate and reliable production results.

Industrietaugliche Implementierung
02

Implementation for industrial applications

The construction of the GMS-I is designed for minimum temperature expansion, and for dealing with adverse industrial conditions. This eliminates the need to recalibrate the measuring head during runtime.

Mechanische Adaptierbarkeit
03

Mechanical adaptability

The measuring range of the GMS-I is adapted to your product portfolio for each project. This means that MSG can always realise the maximum resolution for your measuring task.

04

Use case

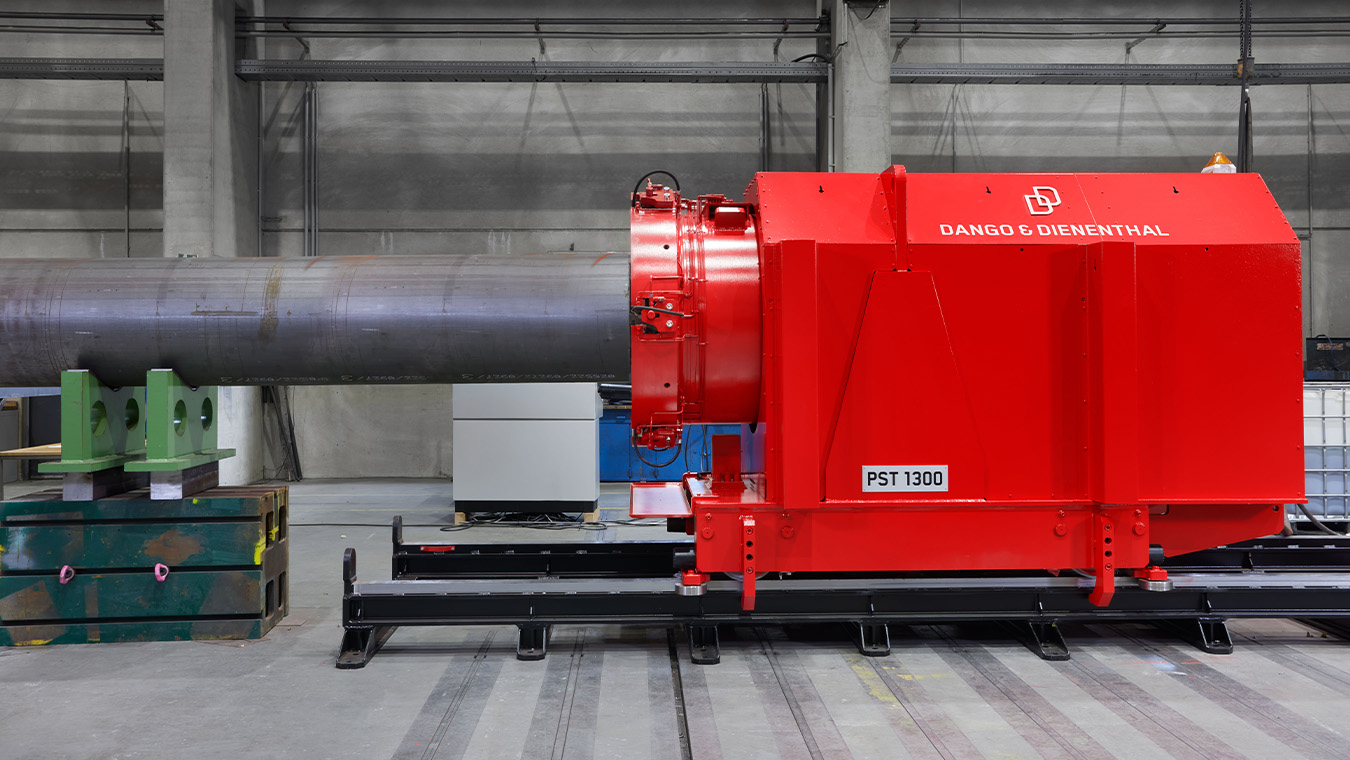

The GMS-I is currently used in various calibration presses. In one variant, the GMS-I is used with a lance gantry for live measurement in an outside bending press. In another project, the GMS-I is required for control purposes in an expanding process at pipe ends.

Visit YouTube

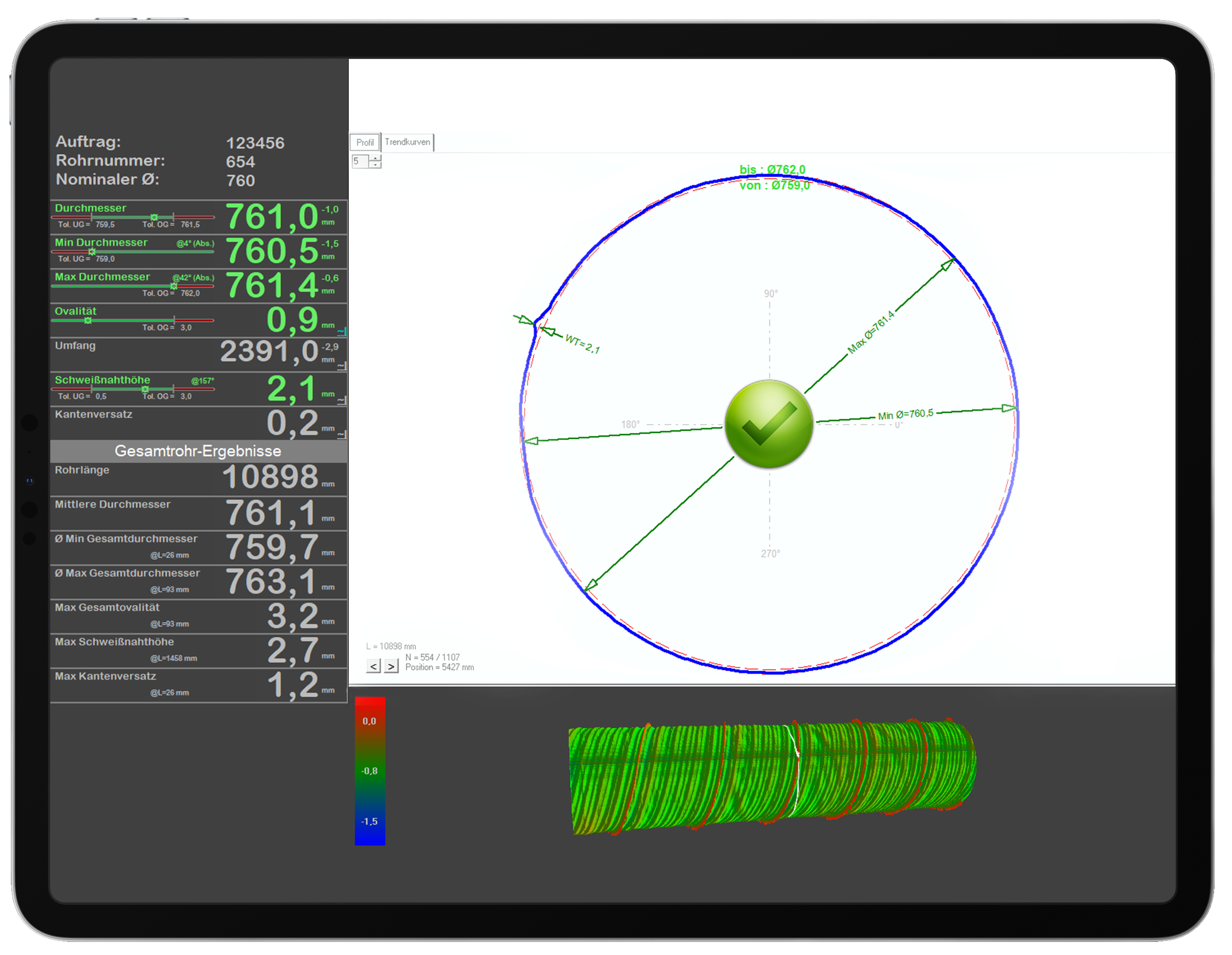

With the visualisation of your digital data, you always stay on top of things and can use the information for further processing.
Nominal data/ Recipe data

With the visualisation of your digital data, you always stay on top of things and can use the information for further processing.

Technical data

Application range

  • Digitization
  • Product certification
  • System control
  • Production optimisation in bending machines
  • Production optimisation in edge rolling machines

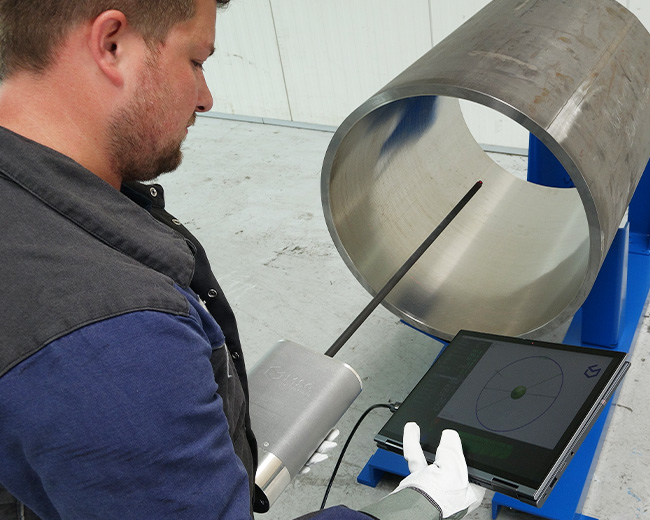

  • Manual field measurement with a handheld device
  • Machine Learning

Product areas

  • Linepipe (LSAW, HSAW, Seamless)
  • Construction pipe

Materials

  • Steel
  • Brass
  • Aluminium
  • Titanium
  • a.o.

Integration possibilities

  • Longitudinal transport
  • Hand measurement

Inspection criterions

  • Inner diameter/radius
  • Circumference
  • Ovality
  • Local eccentricity
  • Weld seam height
  • Weld seam width
  • Seam edge offset
  • Peaking vs. Flattening

Measuring speed

  • 200Hz

Measuring accuracy

  • Bis zu 50µm

Interface

  • Process: PLC
  • Data: SQL

Downloads

  • Data Sheet (EN)

  • Data Sheet (DE)

Similar machines

Take advantage of our know-how and experience to get one step ahead of the competition. Find more solutions here.
